POWER
    TO PULL
    16' BAR
    NO GAS
    HEADACHES
    2 HOURS
    PER CHARGE
    W/ 12' BAR

    Vibratory Screed

    MXF381-2CP

    Learn More about the MX FUEL™ Equipment System

    MX FUEL™ Vibratory Screed

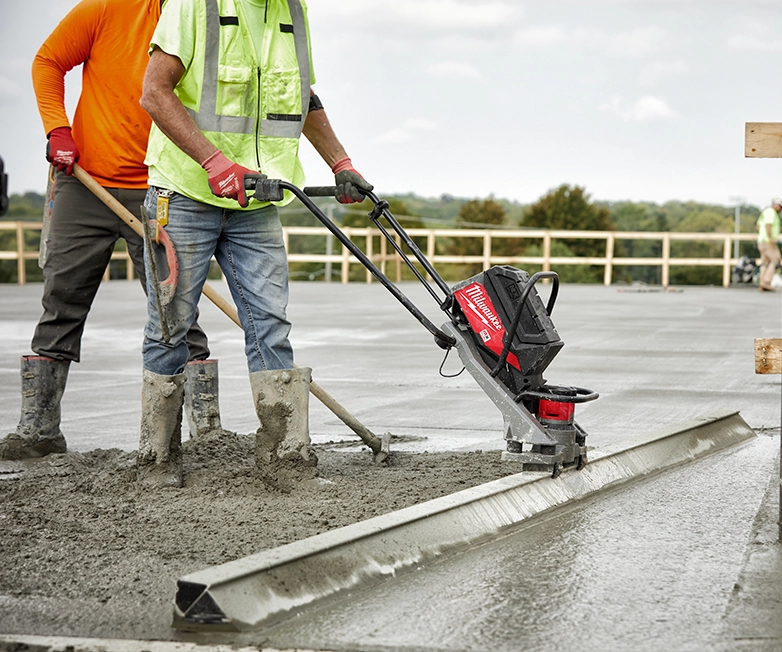

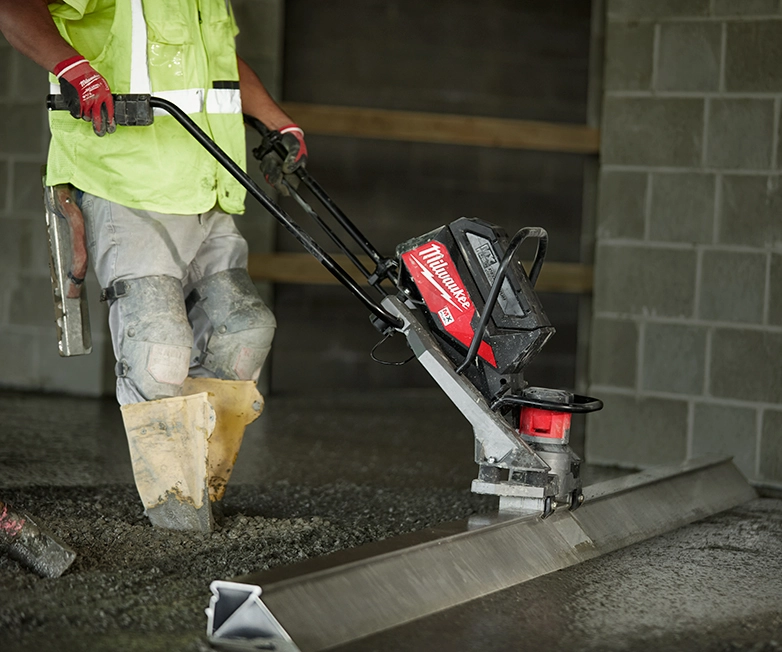

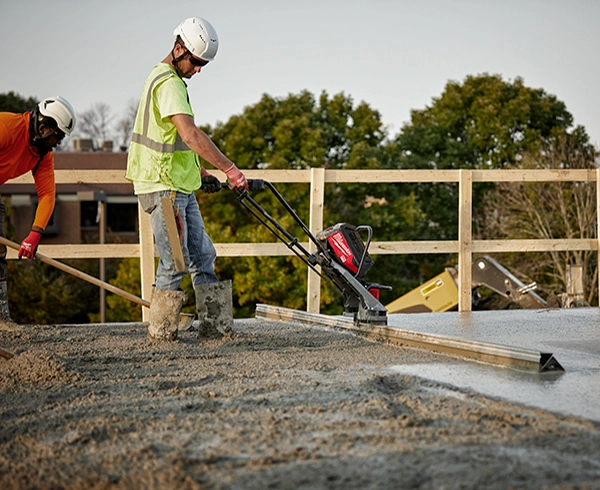

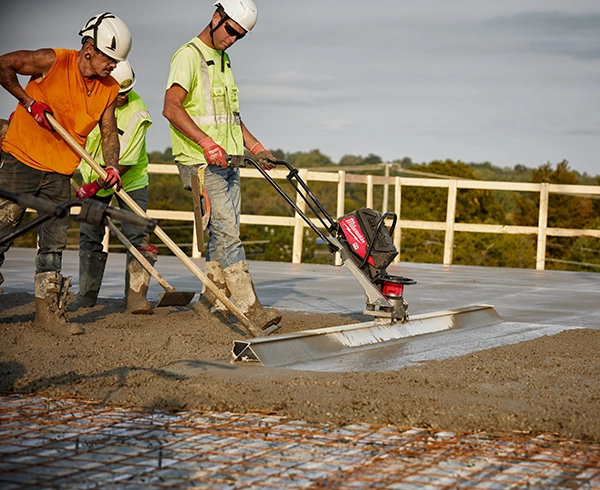

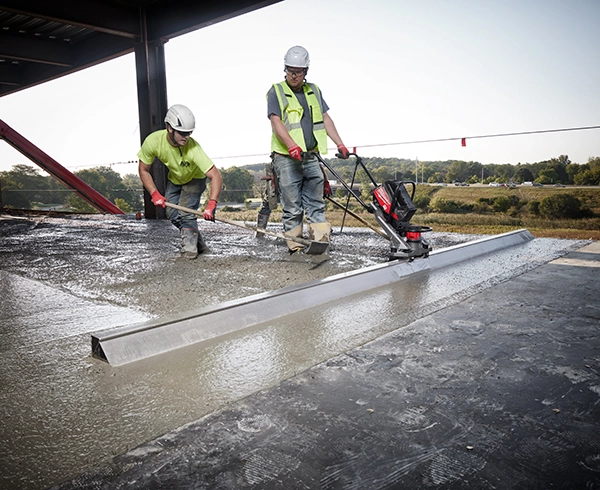

    Our MX FUEL™ Vibratory Screed provides consistent starts and the most reliable pours with the power to pull up to 16 ft bars, no gas headaches, and 2 hours of runtime per charge with a 12 ft bar. The POWERSTATE™ Brushless Motor delivers the power to pull 16 ft bar at 9,000 VPM with a variable speed trigger, giving you maximum control in stiff and wet concrete. The MX FUEL™ REDLITHIUM™ battery pack provides instant power with no gas headaches and requires no regular maintenance, produces less noise, and has zero emissions for a safer workspace, indoors or outdoors. The push-button start delivers instant power, eliminating the repetitive motions of a pull start and reducing downtime, allowing you to get jobs done faster without sacrificing the power and runtime you expect. The battery-powered vibratory screed is compatible with all MX FUEL™ REDLITHIUM™ batteries, giving you the hardest working and most reliable power for equipment. The MX FUEL™ Vibratory Screed can accept bars up to 16 ft long without sacrificing power and can run two motors on one bar for increased mobility. REDLINK PLUS™ Intelligence ensures optimal performance and provides overload protection to protect your machine and battery during the toughest applications. The MILWAUKEE® MX FUEL™ Vibratory Screed is ONE-KEY™ Compatible. You can track, manage and secure your equipment from your mobile device or computer using the industry’s largest Bluetooth® community tracking network. If your screed is ever lost or stolen, you can prevent tampering with remote lockout capability.

    Power to Pull 16' Bar
    No Gas Headaches
    2 Hours Per Charge w/ 12' Bar

    Runtime w/ 1 CP Battery
    At Partial Throttle
    The CP203 Battery recharges in 45 Minutes.

    8 FT Bar


    130 min

    ~7,200 SQ.FT

    12 FT Bar


    120 MIN

    ~10,000 SQ.FT

    16 FT Bar


    30 MIN

    ~3,300 SQ.FT

    MX FUEL™ TECHNOLOGY
    1
    2
    3
    Click a Number for Details

    specifications

      Push Button Start

      Eliminates the repetitive motions of a pull start

      Variable Speed Trigger

      Optimal control for wet and stiff concrete

      Clamp on Bar Design

      Quick attachment with no holes or hardware through bars, compatible with both Milwaukee and MBW bars

      Adjustable handlebars

      Easily adjust handlebar height for user comfort

      ONE-KEY™ Compatible

      Track, manage and secure equipment from your mobile device or computer using the industry’s largest Bluetooth® community tracking network. If ever lost or stolen, prevent tampering with remote lockout capability.

      Battery Type
      Lithium-Ion
      VPM
      4,000 - 9,000
      Bar range
      4-16 ft
      Adjustable Handlebars
      Yes
      Kickstand
      Yes
      Weight with Battery - No Bars
      37 lbs
      Push Button Start
      Yes
      ONE-KEY Compatible
      Track. Manage
      Charge time
      (CP) 45 minutes
      Compatible with MBW Bars
      Yes
      Warranty
      2 year Equipment, Battery & Charger
      Battery System
      MX FUEL
      Includes
      (1) MX FUEL™ Vibratory Screed (2) MX FUEL™ REDLITHIUM™ CP203 Battery Pack (MXFCP203) (1) MX FUEL™ CHARGER (MXFC) (1) 9/16" Wrench
